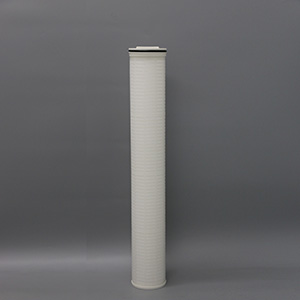

HF High Flow Filter Cartridges, are made of diameter 6 "(152.4mm), single open end, without inner core, inside to outside flow direction. Filter body have two types: melt-blown and pleated. And pleated filter is divided into two forms: standard and crescent-shaped. End caps and filter layer using hot-melt welding, no bonding agent, with a wide range of chemical compatibility, can be applied to various fields.

Features and Benefits
Outer cage is one piece
Filtration systems are 50% smaller than typical size system
Inside to outside flow direction keeps all of the contamination catched
Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance

Typical Applications
Process water
DI water
Pre-filter prior to RO system

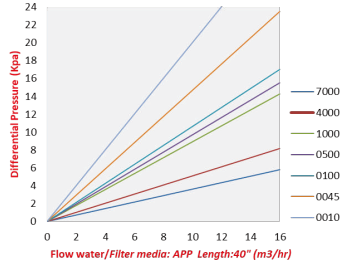

Flow rate characteristics

Dimension
OD: 6" (152mm)
Length: 20", 40", 60"

Materials of Construction
Filter media: PP/GF
Support layer: Polypropylene
Core: Polypropylene
Cage/End caps: Polypropylene
O-ring: refer to ordering information

Operation conditions
Max. operation temperature: 85℃
Max. differential pressure: 3.5 bar/82℃，2.1 bar/80℃

Other types also available

Ordering information
