LESFH Filter Housings
Lenticular Sanitary Filter Housings "LESFH" are specially designed for use with lenticular filter modules, especially in beer, wine filtration.
Designed according to sanitary requirements, the well-polished housing leaves no residual liquids and has an easy throughput for cleaning. The bottom in/bottom out flow pattern eliminates the turbulent flow; thus, enhancing filtration efficiency. Maximum height stack of 4 meets high flow rates requirements.

Features and Benefits
Bottom in /bottom out structure allows for easy cleaning; Drain port is available on the inlet line,which is convenient for drainage
Excellent sealing
Top and middle opening options; easy module change out reduce liquid spoilage

Surface Finish
Polish type: Mechanical polish; Electro-polish
Surface Option: Internal Ra: 0.3μm, External Ra:0.4μm

Material of Construction
Housing body: 304; 316L
Vent/Drain: 304; 316L
Clamp/Swing bolts: 304
Leg: 304
O-ring/Gasket: Silicone, Viton, EPDM, Teflon

Connection
Body connection: Swing blots
Inlet/Outlet: Tri- clamp
Vent: 1/2" NPT
Drain: Tri-clamp 0.5 “
Pressure gauge: 1.5” Tri-clamp

Operation conditions
Maximum operation Pressure: 6bar
Max. working temperature: 130℃
Sterilization: inline/Autoclave @121℃

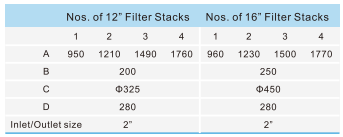

Dimension

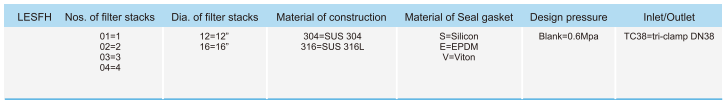

Ordering information
