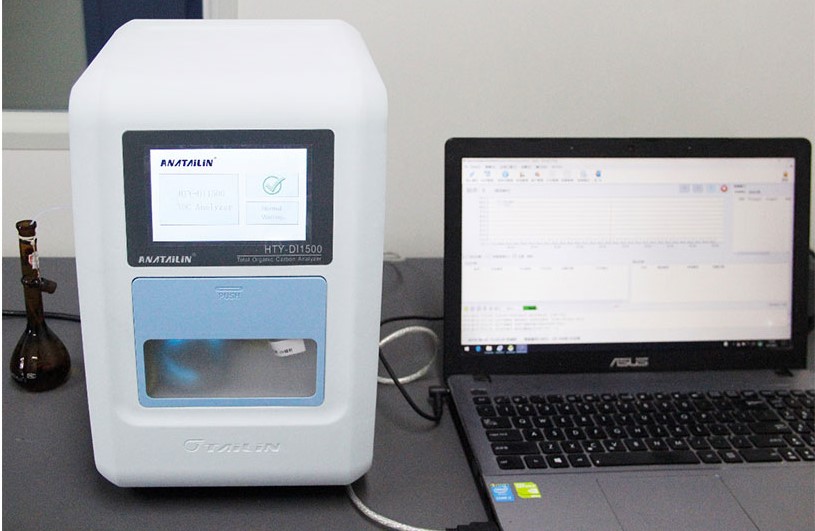

TOC Analyzer ​HTY-DI1500 is designed to determinate the TOC levels of purified water, WFI and Ultra-purified water.
It uses UV lamp oxidation technology for accurate, dependable operation with minimal maintenance.
The analysis is made by the software installed on computer, it is easy to operate and in compliance with the GMP and 21CFR PART 11 requirements.

Features and Benefits
Dual-wave UV oxidation with conducitivity sensor to ensure the reproducibility and long calibration period
Dynamic detection technology combined with professional algorithms to ensure good repeatability
Dural sensor configuration(TC, IC sensors) eliminate the interference of inorganic carbon during TOC determination
Obeservation windows for UV lamp and pump
Less-disassemble design, easy to maintenance
CSV (Computerized System Validation),21 CFR Part 11 compliance, audit trails compliance
It meets the regulatory requirements for ChP,USP<643>, EP2.2.44 and JP16
Match for all our AUTOSAMPLERS

Technical Parameters

Power supply: (100-240)VAC 50/60Hz

Power consumption: 100W
Indication error: ±5%
Repeatability: RSD≤2%
Determination Range:（0-1500.0）μg/L

Test time: 4 min.

Required sample conductivity:（0-5.1）µS/cm@25℃
Required sample temperature:（1-95）℃
Ambient temperature:（10-40）℃

Dimensions: 23cm x 24cm x 34cm

Services
Complete validation protocols
Free online instructions
