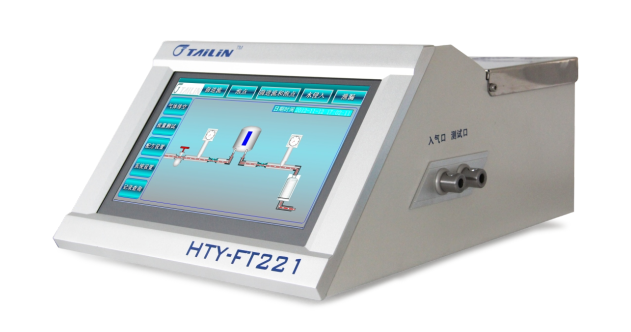

Filter Integrity Tester HTY-FT221 is designed for inspecting the integrity of all kinds of absolute rated filters, such as pleated filter cartridge, capsule filter and syringe filters etc.

Features and Benefits
Easy to clean, suitable for using in cleanroom
Data storage and graphic display
System self-diagnosis before testing
Splash and dust proof
User friendly, touch screen operation
Full automatically running
Stäubli Nipple and coupling
Built-in stylus printer

Technical Parameters
Power supply:(100-240) VAC, 50/60HZ
Power consumption: 70W
Accuracy: ±3% OR ±5‰F.S (Full Scale), whichever is the greater
Test Range:
forward flow: (0.1-200)mL/min, Resolution: 0.1mL/min
water intrusion: (0.05-50)mL/min, Resolution:0.01mL/min
bubble point: (700-6000) mbar, Resolution: 50mbar
Repeatability: RSD≤3%
Dimensions: 40cm×30cm×19cm

Services
Complete validation protocols
Free online instructions
