Single Round Industrial Liquid Filter Housing features a top-inlet and top-outlet, which allows for easy fitting various connections and adaptors.
The housing body is sanitary grade and has a finished polishing of Ra < 0.6μm. This makes it suitable for various applications. Since the housing is a compact structure, top of the filter housing can be fixed to the connection tube. To replace the filter, please twist the body. This ensures that there is no liquid spillover during the replacement process.
In addition, the drain valve located on the bottom of the filter housing allows for easy drainage.

Features and Benefits
Top inlet and top outlet can be connected by the tube
No liquid spillover when replacing the filter housing
Drain valve on the bottom is easy to drain
Design allows for safe sealing
Body connection by tri-clamp for easy filter replacing
Various adapters available: DOE, SOE (226,222)

Surface Finish
Base: Cast
Housing body: Mechanical polished
Surface Option: Internal Ra: 0.3μm, External Ra:0.4μm

Material of Construction
Housing body: 304;316L
Vent/Drain: 304;316L
Clamp: 304
O-ring/Gasket: Silicone, Viton, EPDM, PTFE

Connection
Body connection: Tri-clamp
Inlet/Outlet: 3/4” BSP female/ 1” BSP female
Drain: 1/2” BSP

Operation conditions
Maximum operation Pressure: 0.6bar
Max. working temperature: 135℃

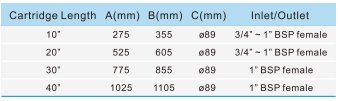

Dimension

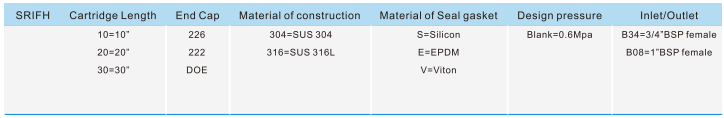

Ordering information
