GF Filter Cartridges are constructed of glass fiber media and polypropylene filtration layers, offering inherently absorptive characteristic that enhances filter retention capability. These filters are designed for the filtration of liquids containing gel, lipids and protein. They have high dirt holding capacity and excellent particle removal efficiency making them strong protection for final sterilizing grade filters.

Recommended for the filtration of high particle-contained liquids and gel-contained liquids

Features and Benefits
High dirt holding capacity makes it service life longer
Low pressure drops high flow rates, and long service life
Stiff structure of glass fiber media assures high flow rate and excellent filtration efficiency

Typical Applications
Culture media
Serum and blood products
High viscous liquid

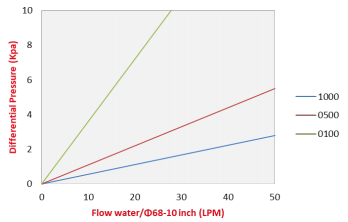

Flow rate characteristics

Materials of Construction
Filter media: microfiber glass
Support layer: Polypropylene
Core/Cage/End caps: Polypropylene
O-ring: Refer to ordering information

Operation conditions
Max. operation temperature: 80℃
Max. differential pressure: 4 bar/21℃，2.1 bar/90℃
Steam sterilization: (autoclave) 121℃/30 min

Food and biological safety
Extractables <30mg per 10 inch
Endotoxins <0.25 EU/ml

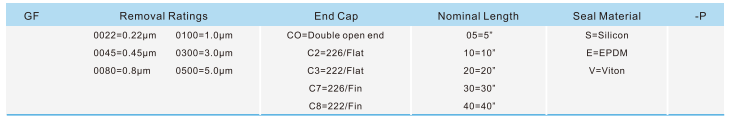

Ordering information
