PFL Filter Cartridges are composed of hydrophobic PTFE membrane. Its features include exceptional organic & inorganic corrosion resistance and inherently hydrophobicity. They are highly recommended for the pre-filtration and sterile filtration of strong solvents, highly corrosive fluids and strong oxidant fluids.

Features and Benefits
Inherently hydrophobic
Wide chemical compatibility
High resistance of aggressive acids and bases
Low extractables
100% integrity test

Typical Applications
Organic-based antibiotic liquids
API
Solvents

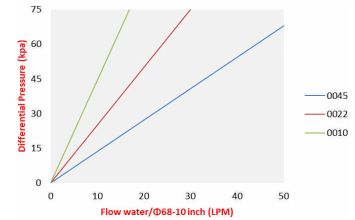

Flow rate characteristics

Materials of Construction
Filter media: hydrophobic PTFE membrane
Support layer: Polypropylene
Core: Polypropylene/Stainless steel 304
Cage/End caps: Polypropylene
O-ring: Refer to ordering information

Operation conditions
Max. operation temperature: 90℃
Max. differential pressure: 4 bar/21℃，2.1 bar/80℃
Steam sterilization: (autoclave) 121℃/30 min

Integrity testing
Bubble point (0.22μm): ≥1100 mbar, 60/40 IPA/water, @20℃
Diffusion flow (0.22μm): ≤16ml/min at 0.8bar
WFT (0.22μm): ≤0.38ml/min at 2.5bar

Food and biological safety
Extractables <30mg per 10 inch
Endotoxins <0.25 EU/ml

Ordering information
