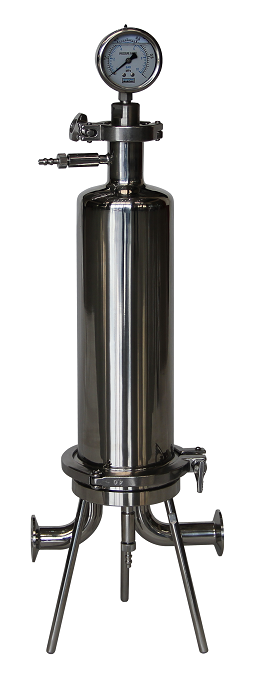

SCSFH Filter Housings
This versatile, single round, sanitary design filter housing is used in life science application for the clarification, sterilization or high-purity filtration of liquids. The housing offers high reliability and security by its special design that is conductive to a thorough cleaning, while still allowing complete drainage of the housing.

Features and Benefits
Vent & Drain: threaded sleeve is separated with stepped thread. So the connection tube will not wave when in the operation of vent or drain.
Enlarge vent and drain internal diameter effectively. Can be connected with 8mm tube
Quick-release closure clamp allows easy disassembly. We use sectional closure clamps that increased 20% pressure endurance than normal clamps

Surface Finish
Polish type: Mirror Polish; Internal Electro-polished
Surface Option: Internal Ra: 0.3μm, External Ra:0.4μm

Material of Construction
Housing body: 304;316L
Vent/Drain: 304;316L
Leg: 304
Clamp: 304
O-ring/Gasket: Silicone, Viton, EPDM, PTFE

Connection
Body connection: Tri-clamp
Inlet/Outlet: Tri-clamp
Vent: 4mm can connect with 8mm tube.
Drain: 4mm can connect with 8mm tube.
Pressure gauge: 1.5inch Tri-clamp.

Operation conditions
Maximum operation Pressure: 0.6bar
Max. working temperature: 135℃
Steam Sterilization: in-situ / Autoclave @121℃/ 30 min

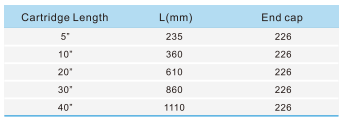

Dimension

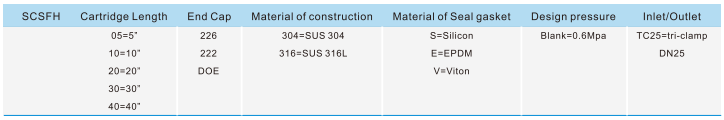

Ordering information
