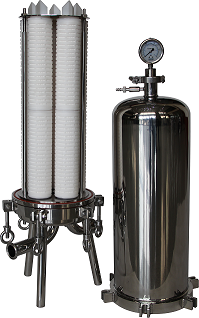

HCSFH Filter Housings
High Flow Multi Round Sanitary Filter Housings are specially designed for high flow rate filtration requirement over 12 filter cartridges.
Flow redesign with flow pattern of side-in and bottom-out reduce cost compared to bottom-in and bottom-out flow pattern. In addition, top-inlet opening eliminates the need to move the housing body while installing the filter elements, thus reducing filter change-out time.
Rocker arm design makes it easier to move the top cap of the filter housing.
The three-part design and attachable plate allow for a complete cleaning when rigorous cleaning requirement are necessary.

Features and Benefits
Special three-part design for easy complete cleaning & save filter elements change-out time
Save cost while providing high flow rate filtration requirement
Various flow pattern suitable for different requirement

Surface Finish
Polish type: Mirror Polish; Internal Electro-polished
Surface Option: Internal Ra: 0.3μm, External Ra:0.4μm

Material of Construction
Housing body: 304; 316L
Vent/Drain: 304;316L
Leg: 304
Clamp: 304
O-ring/Gasket: Silicone, Viton, EPDM, PTFE

Connection
Body connection: Flange / Swing Bolts
Inlet/Outlet: Tri-clamp
Vent: 4mm can connect with 8mm tube.
Drain: 4mm can connect with 8mm tube.
Pressure gauge: 1.5inch Tri-clamp

Operation conditions
Maximum operation Pressure: 10bar
Max. working temperature: 130℃
Steam Sterilization: in-situ / Autoclave @121℃/ 30 min

Dimension
(e.g. 5 Nos. of cartridges, 20”)
Refer to above drawing for it.

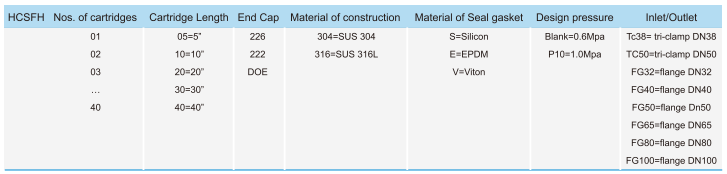

Ordering information
