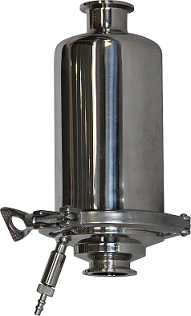

ICSFH Filter Housings
In-line Cartridges Sanitary Filter Housings "ICSFH" are designed and manufactured according to sanitary-grade requirements and GMP standards. Widely used in life-science applications.
Due to compact design of the top-in and bottom-out flow pattern, we recommend to use the filter housings as vent or pipe connector.
It is designed for filtration with low volume requirements. Small filter elements with 56mm diameter will fit in this housing.

Features and Benefits
Quick-release closure clamp allows for quick disassembly - our sectional closure clamps increase pressure endurance by 20% compared to normal clamps
When running at high operating pressure, quick-release closure clamps provide perfecting sealing for PTFE o-rings. Max Operating Pressure can reach 10 bar
Various flow pattern suitable for different requirement

Surface Finish
Polish type: Mirror Polish; Internal Electro-polished
Surface Option: Internal Ra: 0.3μm, External Ra:0.4μm
Material of Construction
Housing body: 304;316L
Vent/Drain: 304;316L
Leg: 304
Clamp: 304
O-ring/Gasket: Silicone, Viton, EPDM, PTFE

Connection
Body connection: Tri-clamp / Strengthened clamp
Inlet/Outlet: 1 inch (DN 25) clamp
Vent: 4mm can connect with 8mm tube.
Drain: 4mm can connect with 8mm tube.
Pressure gauge: 1.5inch Tri-clamp

Operation conditions
Maximum operation Pressure: 6bar
Max. working temperature: 135℃
Steam Sterilization: in-situ / Autoclave @121℃/ 30 min

Dimension

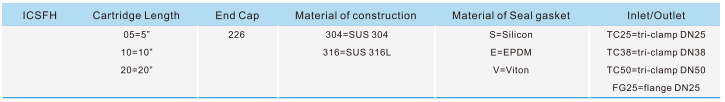

Ordering information
